Introduction
Quick guides on removing and replacing your steering wheel!
I ordered this amazing custom steering wheel from Dallas Custom Steering Wheels and couldn't be happier . The install is super easy as well
Parts
No parts specified.
-
-
Center Steering Wheel & Remove Key from the ignition
-
Using a 10mm wrench, disconnect the positive battery terminal
-
-
-
Insert a 3/16" long allen key to release the airbag spring... the release hole is located on the bottom side of the steering wheel.
-
When inserting the tool into the opening... you will feel some spring tension. Push firmly upwards and the airbag will begin to release its 4 clips
-
-
-

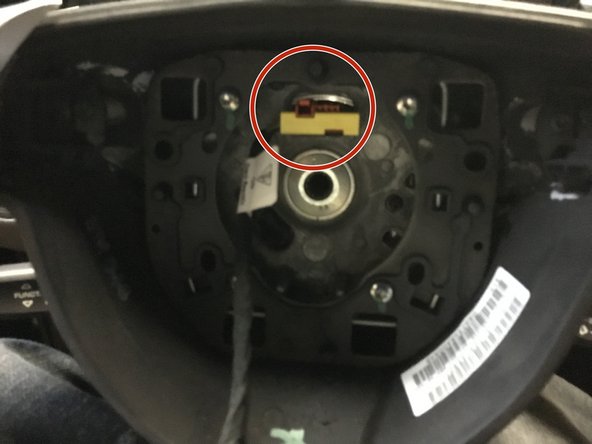

Be certain the cars battery is disconnected before doing this. Otherwise you will get an airbag fault
-
-
-

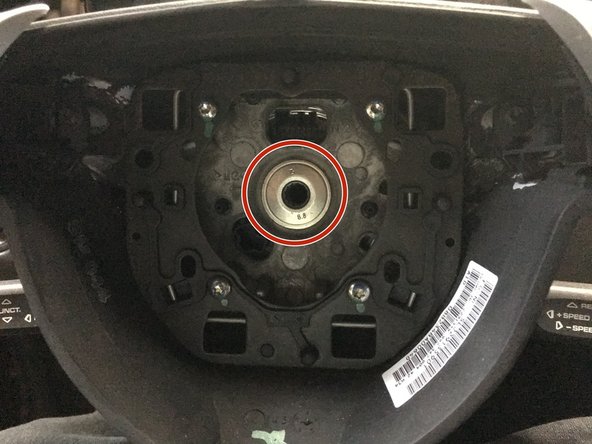

Using a 12 Point Socket 12MM size.... remove the bolt.
-
Do Not Use a standard Torx socket... you risk damaging the threading.
-
-
-
Using a torx socket... remove the left and right trim
-

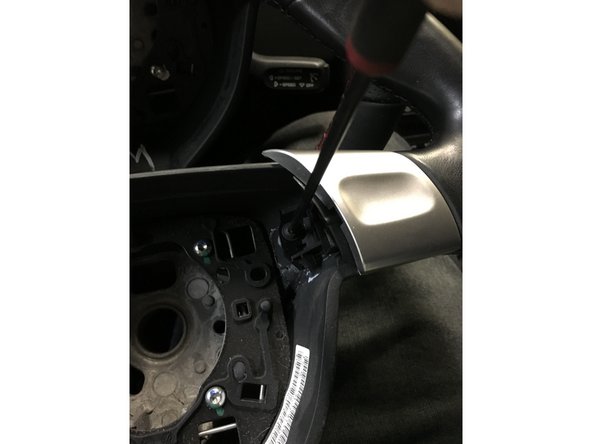

Using a delicate pry bar... remove the bottom trim piece. I had the best luck, working from the lowest point of the wheel.
-
There are 2 small metal washers behind the side trim torx screws. Do not drop them!
-
Using a sharpie , mark the center point of the steering shaft spline for reference.
-
-
-
Slide the steering wheel firmly onto the steering shaft spline. Be certain to center the wheel exactly how you removed it.
-

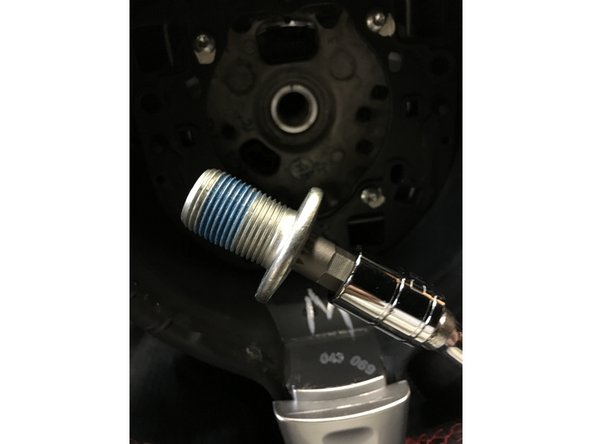

Apply blue thread locking compound
-
Tighten to 37ft lb
-
Install any trim pieces you removed from the old wheel.
-
-
-
Simply reconnect the airbag and push firmly onto springs.
-
Reconnect Battery Terminal
-
Quick Drive will clear any warning lights from the battery disconnect.
-

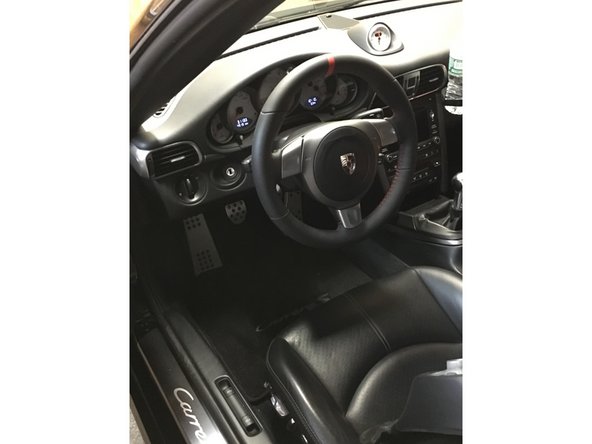

Enjoy your new steering wheel!
-
