Porsche 911 997 Rear Bumper Removal

Written By: DriveDIY
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

8

Time Required

00:10:00

Sections

1

Flags

0

Quiz

0

  1. Open Trunk

    • Open Trunk

    • Loosen Torx Screws

    Edit

  2. Remove Tail Light and disconnect electrical connections

    • Remove Tail Light and disconnect electrical connections

    Edit

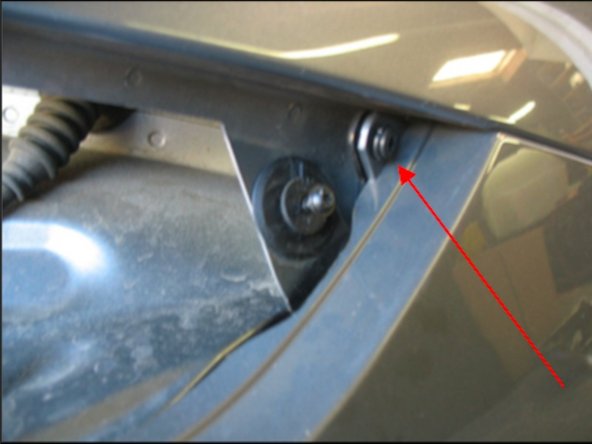

  3. In the far corner is a small fastener securing a tab on the bumper to the quarter panel, remove.

    • In the far corner is a small fastener securing a tab on the bumper to the quarter panel, remove.

    Edit

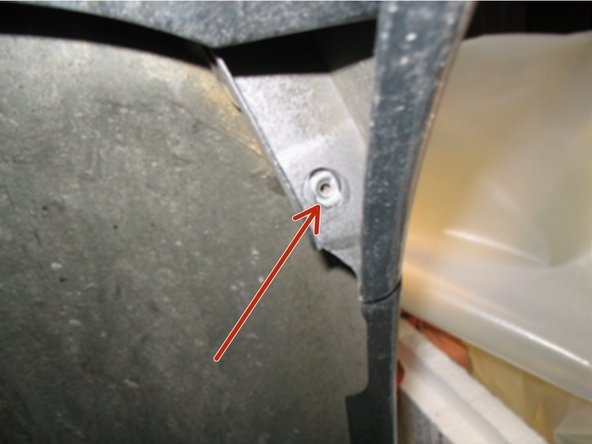

  4. From underneath remove the screw that secures the tip of the bumper to the quarter panel.

    • From underneath remove the screw that secures the tip of the bumper to the quarter panel.

    Edit

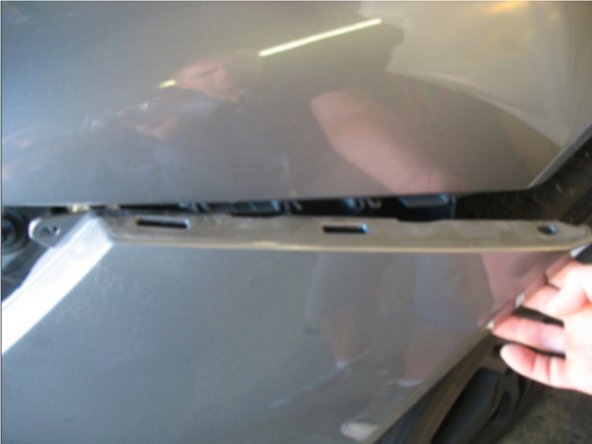

  5. You can now pull the sides of the bumper away from the quarter panel.

    • You can now pull the sides of the bumper away from the quarter panel.

    Edit

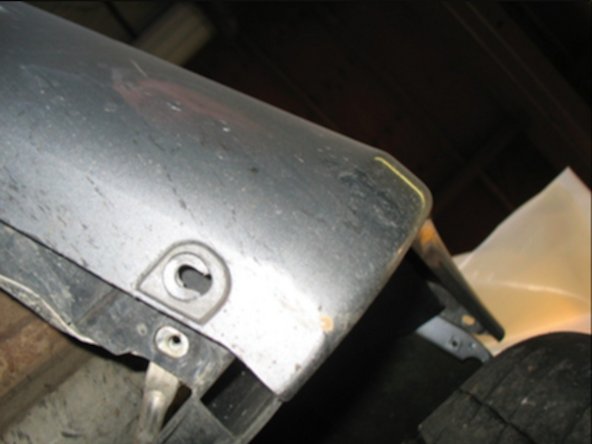

  6. From underneath remove the 2 screws holding the very bottom edge of the bumper.

    • From underneath remove the 2 screws holding the very bottom edge of the bumper.

    Edit

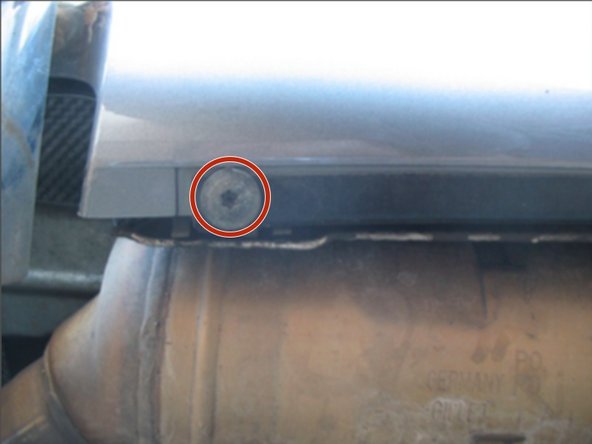

  7. From underneath, by the muffler, remove the 2 bolts holding the bottom center in place.

    • From underneath, by the muffler, remove the 2 bolts holding the bottom center in place.

    Edit

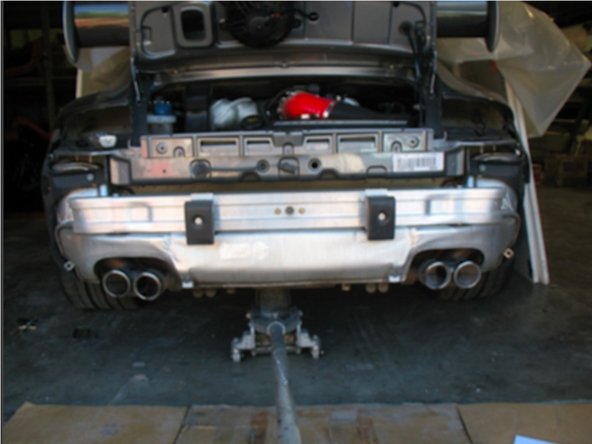

  8. Carefully slide the rear bumper cover off of the car.

    • Carefully slide the rear bumper cover off of the car.

    Edit
